Original World Rig Supply Product Photos
Photographs recovered from our original technical catalog. Actual assemblies and available configurations are confirmed when quoting.
Overview & applications
Four Spiral Hydraulic Hose • 4SH DIN EN 856 Features • USCG Fluid Power and Fuel/Lube Systems Accepted • MSHA Accepted Manufactured in the U.S.A.
Full line hoses and assemblies. Knowledgeable staff and friendly services. Email today for price quote
hydraulic flex hose high pressure hydraulic hose and braided flex hose

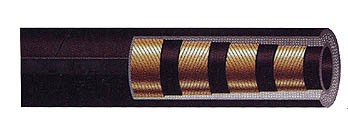

Four Spiral Hydraulic Hose • 4SH DIN EN 856 Features • USCG Fluid Power and Fuel/Lube Systems Accepted • MSHA Accepted Construction • Reinforcement: Four high tensile steel wire spiral layers • Cover: Abrasion and weather resistant synthetic rubber • Tube: Oil resistant synthetic rubber • Operating Temperatures: -40°F to 250°F (-40°C to 121°C) Typical Application • Very high pressure hydraulic lines subjected to pressure surges and flexing. • Oilfield, construction, mining, farming and high performance industrial equipment. Fittings • Larger hex surface with API thread.
Features • USCG Fluid Power and Fuel/Lube Systems Accepted • MSHA Accepted • Flame Resistant Construction • Reinforcement: High tensile steel wire spiral layers: Sizes up to 1" has four layers, Sizes 11/4" thru 2" has six layers. • Cover: Abrasion and weather resistant synthetic rubber • Tube: Oil resistant synthetic rubber • Operating Temperatures: -40°F to 250°F (-40°C to 121°C) Typical Application • Very high pressure hydraulic lines subjected to pressure surges and flexing. • Oilfield, construction, mining, farming and high performance industrial equipment. Fittings • Larger hex surface with API thread.
Technical & ordering information
For an accurate quotation, provide the part number or product type, inside diameter or nominal size, working pressure, required length, end-connection specification, quantity, application, and delivery location. Certificates and testing requirements should be stated with the inquiry.
Some descriptions below come from the historic World Rig Supply catalog. Ratings, stock, manufacturer approvals, compliance, and lead times must be reconfirmed before ordering.
More information from our original product catalog
One Wire Hydraulic Hose • 1 SN DIN 853 Exceeds 100R1AT Features
• USCG Fluid Power and Fuel/Lube Systems Accepted • MSHA Accepted Construction • Reinforcement: One high tensile steel wire braid • Cover: Abrasion and weather resistant synthetic rubber • Tube: Oil resistant synthetic rubber • Operating Temperatures: -40°F to 200°F (-40°C to 93°C) Typical Application • Medium pressure hydraulic lines • Popular for oilfield and farm implement hydraulic lines Fittings • Large assortment of crimp-on fittings and reuseables.
Two Wire Hydraulic Hose • 2 SN DIN 853 Exceeds 100R2AT
Features • USCG Fluid Power and Fuel/Lube Systems Accepted • MSHA Accepted Construction • Reinforcement: Two high tensile steel wire braids • Cover: Abrasion and weather resistant synthetic rubber • Tube: Oil resistant synthetic rubber • Operating Temperatures: -40°F to 200°F (-40°C to 93°C) Typical Application • High pressure hydraulic lines • Oilfield, off-the-road construction equipment, farm equipment and other high pressure applications. Fittings • Large assortment of crimp-on fittings and reuseables.
